5.Bopet Yarn Grade Film

BOPET film, also known as biaxially oriented polyethylene terephthalate film, is a type of plastic film that is widely used in various industries. It is made from the polymer polyethylene terephthalate (PET) through a process called biaxial orientation.

The biaxial orientation process involves stretching the film in both the machine direction (MD) and transverse direction (TD). This stretching aligns the polymer molecules and imparts improved mechanical properties to the film, such as high tensile strength, stiffness, and dimensional stability. BOPET film is known for its excellent clarity, transparency, and ability to retain its shape even under extreme conditions.

Due to its desirable properties, BOPET film has numerous applications. It is commonly used in the packaging industry for food packaging, pharmaceutical packaging, and flexible packaging of various products. The film provides an effective barrier against moisture, gases, and odors, helping to preserve the quality and freshness of the packaged goods.

BOPET film is also used in the electrical and electronics industry for applications such as capacitors, insulating materials, and flexible printed circuit boards. Its excellent dielectric properties make it suitable for these electrical applications.

Moreover, BOPET film finds use in the production of labels, adhesive tapes, solar panels, and protective films for various surfaces. Its versatility, strength, and durability make it a popular choice in different industries where high-performance packaging or protective materials are required.
  • 500kgs

  • 200mm, 300mm, 500mm, 800mm, 1000mm, 1200mm, 1500mm, 2000mm, 2500mm

  • 7um, 12um, 15um, 20um, 23um, 40um, 50um, 70um

  • packaging, Electrical and Electronics, Labels and Tapes, Solar Panels, Lamination

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Bopet Film

BOPET film, or biaxially oriented polyethylene terephthalate film, is a versatile plastic film made from the polymer PET. It undergoes a process called biaxial orientation, which involves stretching the film in both the machine direction (MD) and transverse direction (TD). This stretching aligns the polymer molecules, resulting in improved mechanical properties such as high tensile strength and dimensional stability. BOPET film is widely used in packaging, electrical applications, labels, tapes, solar panels, and more, thanks to its excellent barrier properties, clarity, and printability.


We produce a wide range of Biaxially Oriented Polyethylene Terephthalate (BOPET) Films. Our total production capacity is 200,000 tons per annum.

Selexible films are offered in thicknesses ranging from 6.5 to 75 microns. These films are available in various types including Plain, Surface Treated, Chemically Coated, Matte, Heat Sealable, Metallizable, Green, Clear, Extra Clear, and many others.

Properties of Bopet Film

》superior mechanical properties;

》lmproved resistance to chemicals;

》Good barrier against oxygen;

》Dimensional stability at elevated temperatures;

》Good optical clarity;

》Excellent surface treatment & coatings;

》Excellent surface smoothness;

》Resistance to abrasion

Application of Bopet Film

》Printing & Lamination;

》Pressure Sensitive Tapes;

》Metallizing;

》Holography;

》lndustrial Coating;

》Heat Sealable Films;

》Thermal Lamination;

》Lidding;

》Encapsulation;

》Release Film;

》Hot Stamping;

》Retort Applications;

》Cable Wrapping;

》Siliconized Coating;

》Metallic Yarn;

》Electrical & Thermal Insulation;

》Extra Clear Film for Embossing and many more...


Bopet Yarn Grade Film

  • Film Grade: F-YRN

  • Thickness (Microns): 12 - 50 μm

  • Properties: This film grade offers exceptional clarity, transparency, and thermal stability at elevated temperatures (up to 190°C), making it ideal for metallic yarn processing. Its outstanding clarity and transparency, when metallized and coated with colored lacquer, provide a beautiful luster to the final product.

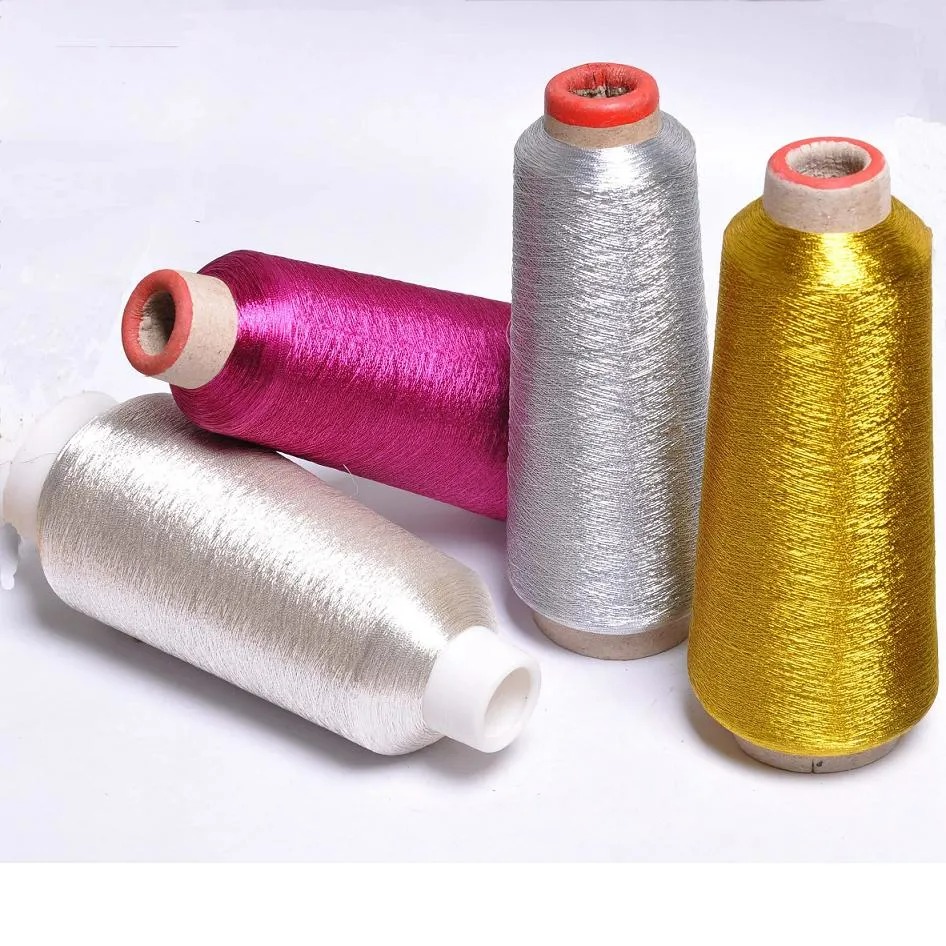

  • Application: This film is suitable for metallic yarn, which can be used directly as plain yarn. Additionally, after metallization and lacquering, it can also serve as synthetic jari yarn.

more details please download the data sheet bellow:

Bopet Yarn Grade Film F-YRN.pdf


  • Film Grade: F-CHY

  • Thickness (Microns): 12 - 23 μm

  • Properties: F-CHY is a transparent BOPET film. It features a chemical coating on one side while the other side remains untreated.

  • Application: This film grade exhibits enhanced shrinkage properties at high temperatures and is suitable for applications where exposure to elevated temperatures occurs during yarn conversion.

more details please download the data sheet bellow:

Bopet Yarn Grade Film F-CHY.pdf


  • Film Grade: F-CCY

  • Thickness (Microns): 12 - 23 μm

  • Properties: F-CCY is a transparent BOPET film. It features a chemical coating on one side and corona treatment on the other side.

  • Application: This film grade offers enhanced shrinkage properties at high temperatures, making it suitable for applications where exposure to temperature occurs during yarn conversion.

more details please download the data sheet bellow:

Bopet Yarn Grade Film F-CCY.pdf


Production Details About Jiangsu Selexible Bopet Film

We are the manufacturer located in Jiangsu, China, and we have been specialized in this area for more than 18 years with SGS and TUV certificate.

The factory covers an area of more than 50, 000 square meters and 6 main production workshops. Using international advanced equipment and production technology, we can produce pet sheets with a thickness between 6.5 to 75 microns.

Bellow is the pictures of our factory:

bopet factoryBopet film productionBopet manufacturer

Bopet productionBopet film factoryBopet film manufacturer


Packaging and Shipping of Bopet Film to Abroad

* Export standard package in upright packing or suspend packing.

* We can deliver the goods to port to to door(customer's address) through sea shipping, air shipping or express.

BOPET packagingBopet film packageBopet film packagingBopet loading


Purchasing Notice

Minimum Order Quantity (MOQ)

500kgs

Payment Method
Bank T/T transfer(USD, EUR and RMB), L/C at sight, Paypal, USDT
Monthly Production

10.000~15.000 tons

Delivery Time
3~15 days
Loading Port  Shanghai/Ningbo port, China
